Shandong Kub Fly Thaum tshav kub kub Exchange Equipment Co., Ltd. Nrog kev paub ntau, peb zoo siab tos txais koj rau cov lag luam wholesale bulk advanced condenser nrog lub cheeb ntawm 7 hli rau muag ntawm no los ntawm peb lub hoobkas. Customized xaj yog txais tos.

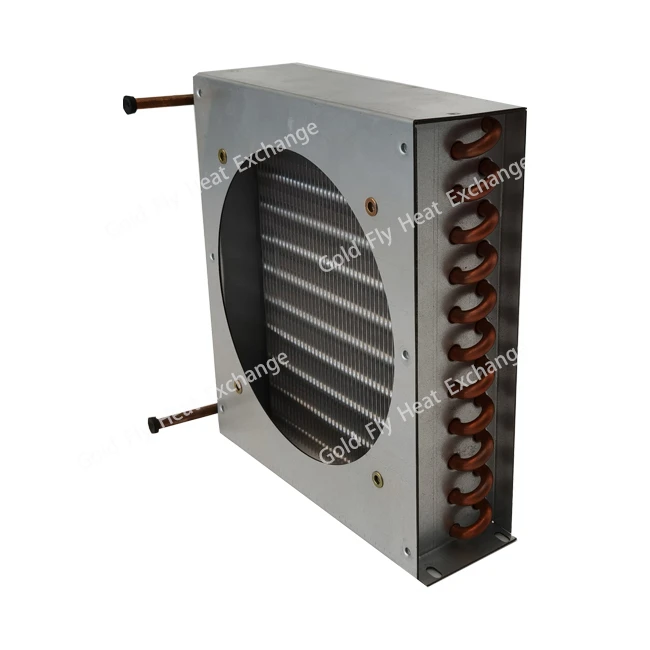

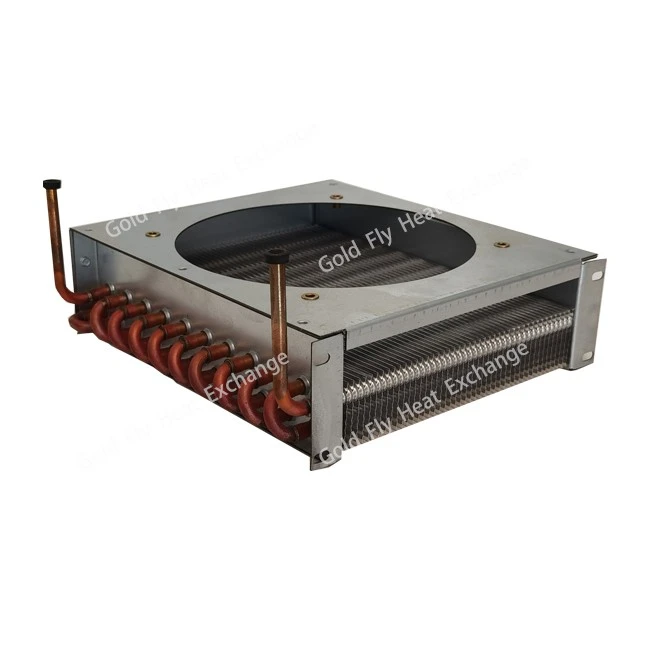

Condenser nrog ib txoj kab uas hla ntawm 7 mm
1.Product Introduction
Siv high -purity internally threaded tooj liab raj, lub raj phab ntsa yog ib yam, lub thermal conductivity yog zoo heev, lub siab tsis kam yog muaj zog, thiab lub me me txoj kab uas hla qauv yog ua ke nrog lub puab phab ntsa xov los txhim kho cov cua sov, zoo heev txhim kho cov tshav kub exchanger efficiency ntawm lub tub yees thiab lub raj phab ntsa.
Kev siv lub qhov rais qhib corrugated aluminium fins los rhuav tshem cov huab cua ciam teb thiab ua rau kom muaj cua sov thiab ua kom sov ua haujlwm; Optional hydrophilic film thiab electrophoretic anti-corrosion technology, nrog anti-corrosion, anti condensation, thiab yooj yim los ntxuav cov yam ntxwv, haum rau complex ua hauj lwm tej yam kev mob xws li sab nraum zoov, av noo, thiab siab ntsev tsuag.
Siv cov cuab yeej siv tshuab raj nthuav dav, lub raj tooj liab seamlessly adheres rau cov fins los tiv thaiv loosening thiab delamination; Tag nrho cov ntawv hlau thav duab yog ruaj khov thiab tsis deformed, cov raj xa dej sib npaug sib npaug, cov cua sov dissipation yog ruaj khov, thiab siab - siab tsis zoo los ntawm kev tsis ncaj ncees tam sim no thiab cov cua kub tsis sib xws raug tshem tawm.
2.Product Parameter (specification)
| Specification | Tube pitchA | Row pitchB | Tube loj | Tube Khoom | Fin suab | Khoom siv Fin |
| Loj: φ7mm * 21 * 18.2 | 21mm ib | 18.2mm ib | f7mm ua | Copper Tube (SmoothTubeor Rifled Tube) | 2.0-4.5 hli | Aluminium fin (Pab liab finorhydrophilicfin) |
| kho tau | ||||||
| φ9.52mm * 25 * 21.65 hli | 25 hli | 21.65mm 3 | φ9.52 hli | Copper Tube (SmoothTubeor Rifled Tube) | 2.0-3.5 hli | Aluminium fin (Pab liab finorhydrophilicfin) |
| kho tau | ||||||
| φ9.52mm * 25 * 21.65 hli | 25 hli | 21.65mm 3 | φ9.52 hli | Copper Tube (SmoothTubeor Rifled Tube) | 4.0-9.0 hli | Aluminium fin (Pab liab finorhydrophilicfin) |
| kho tau | ||||||
| φ12 hli * 35 * 35 | 35mm ib | 35mm ib | φ12 hli | Copper Tube (SmoothTubeor Rifled Tube) | 4.0-10mmadjustable | Aluminium fin (Pab liab finorhydrophilicfin) |
| φ12mm * 35 * 30.31 | 35mm ib | 30.31mm 3 | φ12 hli | Copper Tube (SmoothTubeor Rifled Tube) | 4.0-10 hli | Aluminium fin (Pab liab finorhydrophilicfin) |
| kho tau | ||||||
| φ15mm * 60 * 30 | 60 hli | 30 hli | φ15 hli | Copper Tube (SmoothTubeor Rifled Tube) | 4.0-10 hli | Aluminium fin (Pab liab finorhydrophilicfin) |
| kho tau |
3.Product feature thiab daim ntawv thov
Cov yeeb nkab txoj kab uas hla specification: txheem txheej txoj kab uas hla 7 hli, sib phim nrog nyias -walled siab hniav internally threaded tooj liab yeeb nkab, phab ntsa thickness 0.22-0.35mm, kauv hniav reinforced puab phab ntsa kub hloov lwm lub tsev
Adaptation qauv: Nruab nrog lub qhov rais / corrugated aluminium fins, compact tube kev npaj (ib leeg / ob chav kab universal), daim duab peb sab qhov sib nrug, haum rau tsev neeg tub yees, coj mus muag freezers, me me tub yees, cov khoom cua txias
Cov yam ntxwv ntawm cov kua dej: Lub ntim ntim hauv lub raj yog me dua li ntawm 9.52mm (3/8 inch) cov raj loj, cov tub yees ntws tau nce ntxiv, thiab cov cua sov hloov ntawm ciam txheej yog nyias; Piv rau 5 hli ultra- cov raj nyias, qhov poob siab, kev tiv thaiv corrosion, thiab kev ua haujlwm ruaj khov tau ua kom zoo dua qub thiab cuam tshuam, ua rau nws txoj kab dav dav rau kev ntsuas kev ua tau zoo, nqi, thiab kav ntev hauv cov khoom siv tub yees.
Cov yam ntxwv ua haujlwm: Cov yeeb nkab khoov tsis yooj yim rau wrinkling thiab muaj qhov tshwm sim tsawg ntawm kev nthuav tawm tawg. Cov txheej txheem welding thiab expansion molding yog cov paub tab, thiab cov qoob loo ntau lawm yog siab. Nws yog tsim rau automated ntau lawm kab
Cov khoom no yog tsim rau ntsug tshiab- khaws cov txee, ncuav mog qab zib tso txee, thiab dej txias txias
Supermarket cua curtain txee, me me ceev lub freezer, chav ua noj countertop freezer, mis nyuj tshuaj yej khoom, ice txiag, ice cream tshuab condenser
4.Prodection cov ntsiab lus
5.Kev xa khoom, kev xa khoom thiab kev pabcuam
1, Kev xa khoom
Kev tsim khoom thiab xa khoom
Automated electrophoresis los ua ke kab rau ntau lawm, nrog cov kev qhia tshwj xeeb muaj nyob hauv Tshuag; Customized loj thiab integrated electrophoretic qauv nrog shells yog xa raws sij hawm raws li lub voj voog kev txiav txim. Tom qab kev tsim khoom tiav, kev tshuaj xyuas tag nrho ntawm huab cua siab xau kom pom thiab cov xim zoo nkauj yog ua los tiv thaiv cov khoom siv xws li vuam xau thiab xim tev tawm ntawm kev xa tawm.
Kev kuaj xyuas khoom xa tuaj
Txhua yam khoom raug kuaj xyuas cov qauv, qhov loj me, thiab cov xim electrophoretic kev ncaj ncees, nrog rau cov npe tshwj xeeb txuas nrog. Kev txiav txim lag luam txawv teb chaws tuaj yeem nrog cov npe ntim khoom thiab daim ntawv pov thawj ntawm kev ua raws li cov cai tshaj tawm kev lis kev cai.
Txoj kev xa khoom
Txhawb nqa lub Hoobkas rau tus kheej, tag nrho lub tsheb xa khoom, tsawg dua li kev thauj khoom thauj khoom thauj khoom, thiab tag nrho cov thawv ntim khoom xa tuaj. Peb tuaj yeem koom tes nrog cov neeg siv khoom thauj khoom thauj khoom thauj khoom.
2, Kev thauj mus los
kev tiv thaiv ntim
Lub txheej txheej ntawm cov khoom yog them nrog cov yeeb yaj kiab tiv thaiv, thiab cov ces kaum tiv thaiv ntxiv. Rau cov khoom loj thiab ntau yam, cov thawv ntawv tawv tawv / ntoo thav duab yog siv los txhawb nqa; Electrophoretic xim nto yog khawb resistant, tiv thaiv -kev sib tsoo, thiab zam kev thauj mus los, raug, thiab xeb.
6.FAQ
Q1: Koj puas yog lub Hoobkas lossis tuam txhab lag luam?
A1: Peb muaj peb tus kheej lub Hoobkas thiab cov tuam txhab muag khoom, tus kheej - tsim thiab muag..
Q2: Koj lub Hoobkas nyob qhov twg?
A2: Peb lub Hoobkas nyob hauv Xingfu Hauv Nroog, Binzhou City, Shandong Province
cov neeg siv khoom tuaj xyuas thiab qhia
Q3: Puas muaj qauv?
A3: Yog.
Q4: Koj puas tuaj yeem hais raws li daim duab?
A4: Yog, peb tuaj yeem ua tau.
Q5. Koj qhov txiaj ntsig yog dab tsi?
A5. 1. Kev tsim khoom nplua nuj txij li xyoo 1999.
2. Ntau yam ntawm cov tshuab thiab cov cuab yeej ua haujlwm,
ruaj khov zoo thaum ua kom cov khoom xa tuaj.
3. Yam tsawg kawg nkaus kom muaj nuj nqis: 1 PCS.
4. Loj - nplai ntau lawm ua rau peb tus nqi qis rau
cov khoom zoo ib yam
5. Cov qauv thiab cov kev pabcuam customized muaj.
Q6.Cov khoom siv dab tsi koj siv
A6.Peb kho thiab xaiv cov ntaub ntawv xws li txhuas raj thiab tooj liab raj raws li cov neeg siv khoom xav tau
Q7.Yog nws yooj yim thiab yooj yim rau siv thiab ua haujlwm
A7.Yog, nws yooj yim heev
Q8.Yog cov khoom ntim khoom ruaj ntseg lossis tsis?
A8.Yog, peb yuav ntim nws zoo heev thiab ruaj ntseg
7.Xov xwm tshiab
Shandong GoldFly Thaum tshav kub kub Exchange Equipment Co., Ltd
PROFESSIONAL CONDENSER & EVAPORATOR COIL Chaw tsim tshuaj paus:
Peb lub rooj cob qhia npog thaj tsam ntawm 20,000 square metres nrog ntau thawj -chav kawm cov khoom siv thiab cov kws tshaj lij.
Peb tau cog lus rau kev tshawb fawb, kev tsim khoom thiab kev muag khoom ntawm condensers thiab evaporators raws li kev lag luam thoob ntiaj teb txij li xyoo 1999.
Cov condensers thiab evaporators uas tsim tawm yog ib qho - huab cua, ob - huab cua, thiab triple - huab cua qauv. Ua tsaug rau peb tus kheej R & D thiab pab pawg tsim khoom,
Tsom ntsoov rau Kev Tsim Khoom thiab R & D hauv Condensers, Evaporators, Unit, Monoblock.
Peb tau tsim cov khoom nrog nruj hauv kev tsim khoom thiab cov khoom siv:
1. Xaiv lub teeb ci, hydrophilic foil aluminium fins, tooj liab thiab lwm yam khoom zoo - zoo raw khoom
2.Mechanical tube expansion, theem nrab flanging thiab lwm yam optimized txheej txheem.Machine welding speeds li ntau lawm efficiency thaum guaranteeing zoo heev.
3. Cov yeeb nkab sib nrug thiab cov ntawv sib nrug yog tsim los ntawm cov kws ua haujlwm nruj, thiab lub plhaub thiab cov phaj kawg yog stamped los ntawm siab - cov phaj zoo, ua haujlwm ntev thiab hnyav.
4. Cov tshuaj tiv thaiv nruj heev - kev kho corrosion thaum kawg, 100% kev soj ntsuam zoo ua ntej tawm hauv lub Hoobkas
Cov yam ntxwv ntawm peb cov condenser thiab evaporators:
compact qauv, txuag hluav taws xob hloov pauv, tiv thaiv-ultraviolet, thiab zoo tiv thaiv- kev ua haujlwm corrosion
Cim npe nrov: Condenser nrog txoj kab uas hla ntawm 7 hli, Tuam Tshoj condenser nrog txoj kab uas hla ntawm 7 hli manufacturers, lwm tus neeg, Hoobkas
